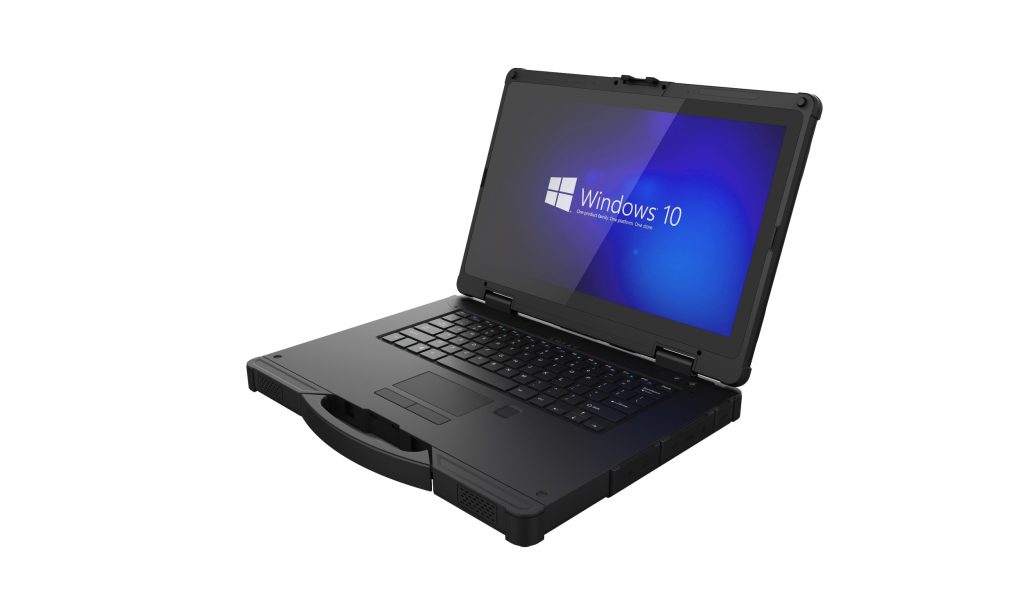

11.6 inch rugged laptop L1



11.6 inch screen
Windows 10
NFC Reader
IP 65
4G-LTE
1D/2D barcode scanner optional
8G +128G Storage

L1 Specification

CPUIntel Skylake M3-7Y30, 4M Cache, 2.60 GHz
MemoryRAM:8GB,ROM:128GB
OSWindows 10
Display11.6 inch IPS screen, 1920*1080, 350 nits
Touch PanelG+G, Corelle gorilla, hardness over 7H, scratch resistant, TP thickness: 1.1mm, COF, support windows ink
Dimenson305*205*16.5 mm
Weight3140g
Battery6300 mAH, 7.4V
Camera2MP+8MP
WiFiWIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G double frequency WIFI
3G/4G frequency ME936 LTE M.2 LTE: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20;

WCDMA/HSDPA/HSUPA/HSPA+ : 850MHZ/900MHZ/1700 MHZ(AWS)/1900MHZ/2100MHZ;

GPRS/EDGE: 850MHZ/900MHZ/1800MHZ/1900MHZ;

GPS/GLONASS: L1;
GPS U-blox NEO-7, support : GLONASS, QZSS, GPS: acquisition sensitivity: -160 dBm: Cold start time: <30 second, Hot start time: <28 second, frequency: 0.25 Hz … 10 MHz (configurable)
2D scanner(optional) Honeywell N3680;

Optical Resolution: 5mil;

Scan speed: 50 times/s;

Symbol System: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
Fingerprint(optional) FPC1020(sensor, Compression type of capacitance)

Fingerprint acquisition area: 10mm x10mm

Resolution: 192x192pixel/508DPI
USB portType A USB 3.0*1(host) USB2.0*2(on the keyborad)
POGO-PIN12 pin POGO-PIN coonector for data transmission and charging(host)
DC JackDC 12V 4A power interface*1(host)
HDMIHDMI C*1(host)
DB9 port DB9 (RS232, RS485)*2(on the keyborad)
RJ45 port(10/100 self-adaption)*1(on the keyborad)
TF Cardsupport SDHC/SDXC*1 max:128G(host)
SIM Card3G/4G,SIM card slot*1(host)
Operating Temperature-10℃~50℃/ -14 °F to 122 °F
Storage Temperature-30 °C to 70 °C/ -22 °F to 158 °F
Humidity5%RH~95%RH(non condensing)
IP GradeIP 65
Drop Height80cm composite wood floors, in operation status


Processor

<

Intel®Kabylake Core™ m3-7Y30 Processor make it fast to run


Operation System

Windows 10 makes your application easy to handle


Survive in harsh environment

IP 65 against water and dust , 1.2 m drop resistance
