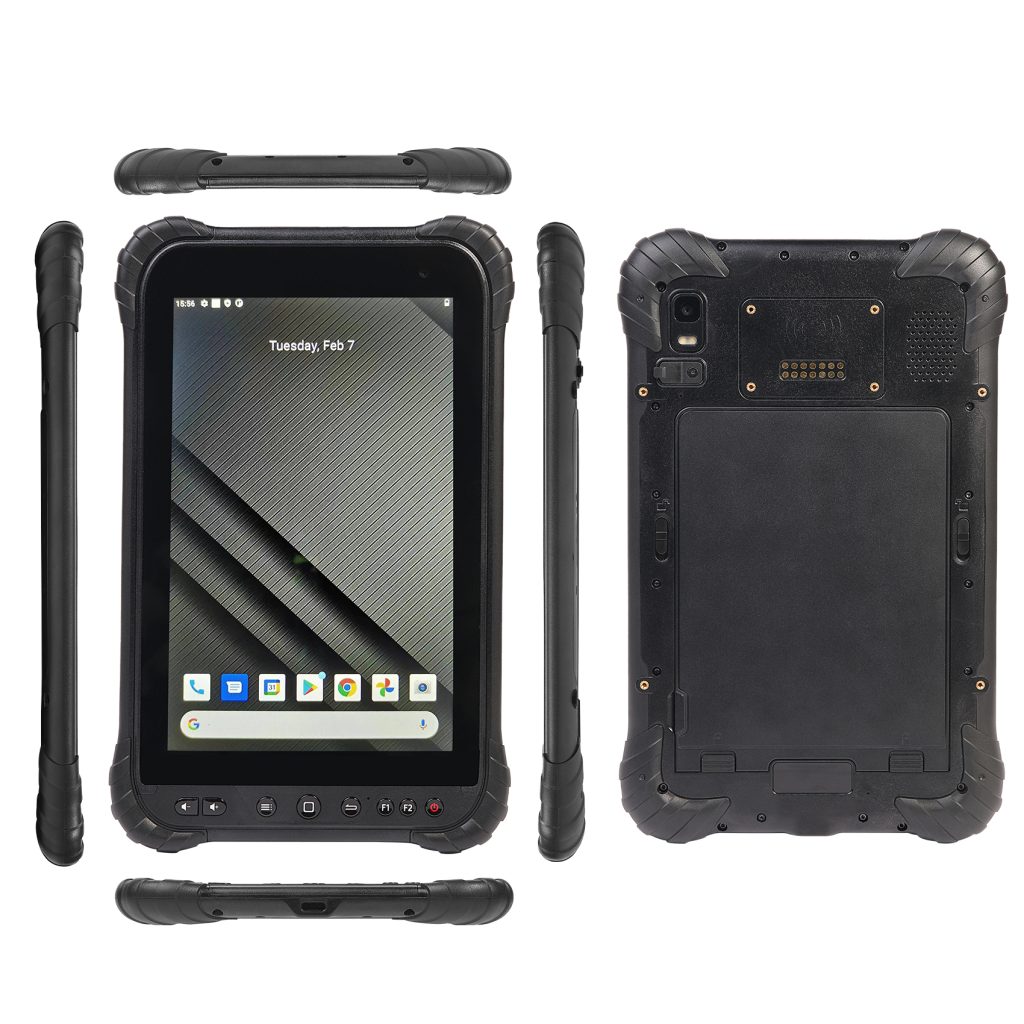

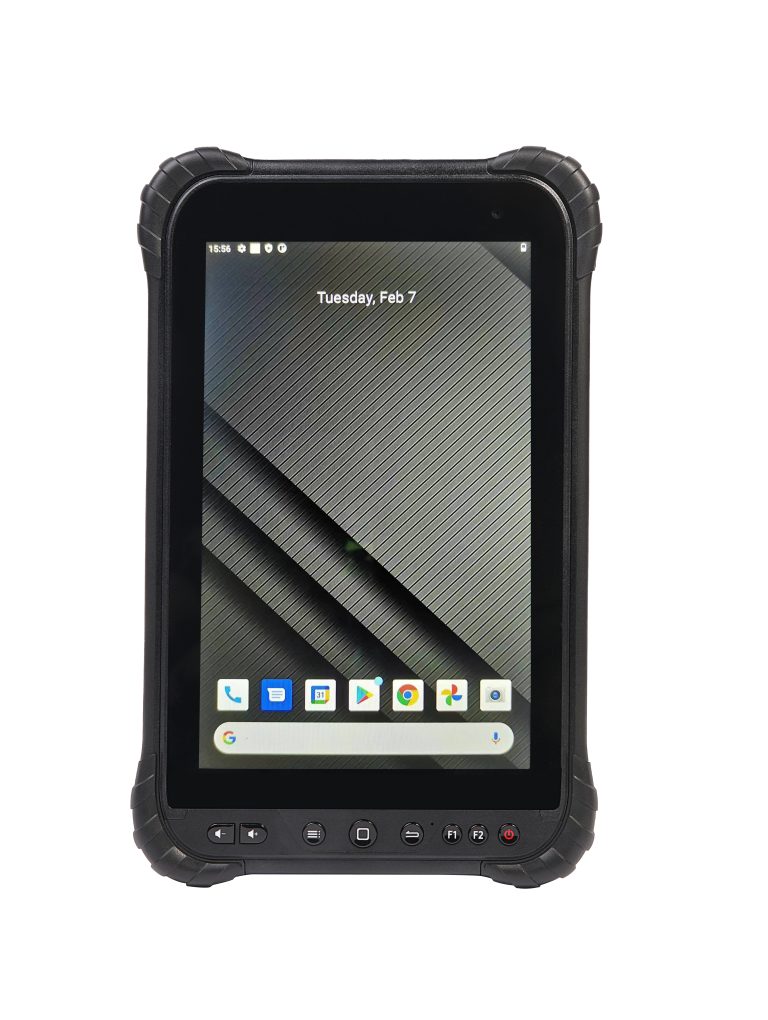

8 inch rugged tablet T5G
- 8 inch screen
- Android 13
- SM4350 CPU
- U-Blox F9P/UM980 GPS
- 2D scanner/NFC/RFID reader
Specification
Qualcomm SM4350 CPU
Powerful CPU help you to handle multiple tasks, Android 13 OS can meet lots of working requirements, running real smoothly!
High accurate GPS
Looking for a better GPS module and antenna? Let’s go with U-Blox F9P or Unicorecomm UM980! F9P/UM980 + centering rod + mushroom antenna can assemble as a simple RTK system, which can fulfill lots of GNSS working requirements.
More functions
With F9P/UM980, 2D scanner, LAN, vehicle charging pod, T5G is now selling like a hot cake in GNSS, warehouse management, fleet management, construction and house inspection industry, etc. It is also acceptable to customize an unique pod for your project!

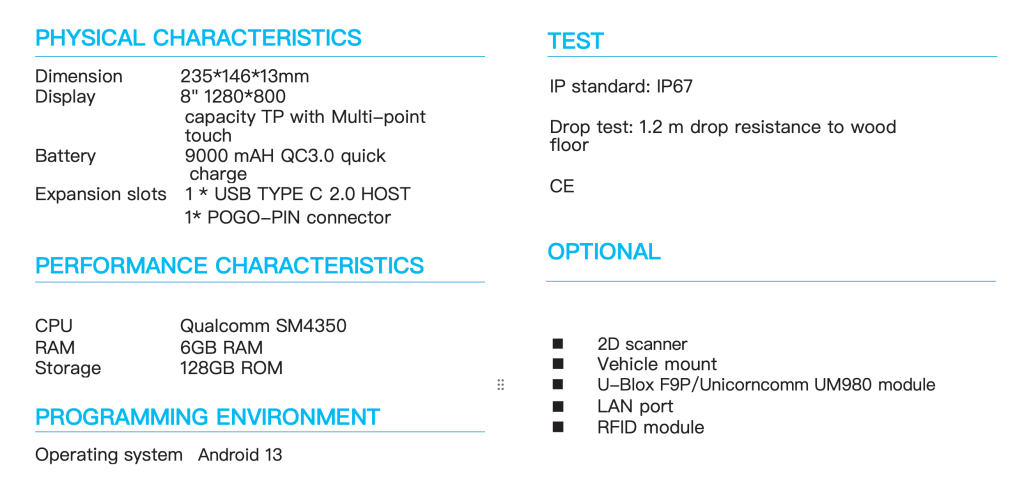

T5G Specification
| CPU | Qualcomm SM4350 |
| Memory | RAM:6GB,ROM:128GB |
| OS | Android 13 |
| Display | 8 inch IPS screen, 1280*800, 5700 nits |
| Touch Panel | Multi-point capacitive |
| Dimenson | 235*146*13mm |
| Weight | 630g |
| Battery | 9000 mAh, support QC3.0 quick charge, Li-polymer, removeable battery |
| Camera | 5MP+13MP |
| WiFi | Wifi 6-Ready, 802.11ac, a/b/g/n, Frequency 2.4GHz/5GHz |
| 3G/4G frequency | GSM: 850/900/1800/1900 EVDO: BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B20/B28 5G NR: N1/N3/N28/N41/N78/N79 |
| GPS | U-Blox M8030 (U-Blox F9P and Unicorncomm UM980 are optional) |
| NFC | Built-in, 13.56 MHz |
| 2D scanner (optional) | Newland EM3296 image Sensor: 640X480 CMOS; illumination: Red light LED 625 ± 10n; Reading system: 1D and 2D |
| UHF (optional) | FCC (USA) 902MHz ~ 928MHz Europe 865MHz~867MHz SRRC-MII (China) 840-845MHz, 920-925MHz Reading label No. per second >50, Reading distance >3 Meter |
| USB port | USB Type-c support OTG, USB 2.0 |
| POGO-PIN | POGO-PIN coonector for data transmission |
| TF Card | support SDHC/SDXC x1 max:128G 0 |
| SIM Card | 3G/4G, Dual sim & Dual standby |
| Operating Temperature | -20℃~60℃/ -4 °F to 140 °F |
| Storage Temperature | -30 °C to 70 °C/ -22 °F to 158 °F |
| Humidity | 5%RH~95%RH(non condensing) |
| IP Grade | IP 67 |
| Drop Height | 1.2m composite wood floors, in operation status |
