8 inch rugged tablet T5
- 8 inch screen
- Android 10
- SDM632 CPU
- U-Blox F9P GPS
- 2D scanner/NFC/RFID reader
Specification
Qualcomm SDM632 CPU
Powerful CPU help you to handle multiple tasks, Android 10 OS can meet lots of working requirements.
Ublox High accurate F9P GPS
Looking for a better GPS module and antenna? Let’s go with U-Blox F9P! F9P + centering rod + mushroom antenna can assemble as a simple RTK system, which can fulfill lots of GNSS working requirements.
More functions
With F9P, 2D scanner, LAN, laser ranging, vehicle charging pod, T5H is now selling like a hot cake in GNSS, warehouse management, fleet management, construction and house inspection industry, etc. It is also acceptable to customize an unique pod for your project!

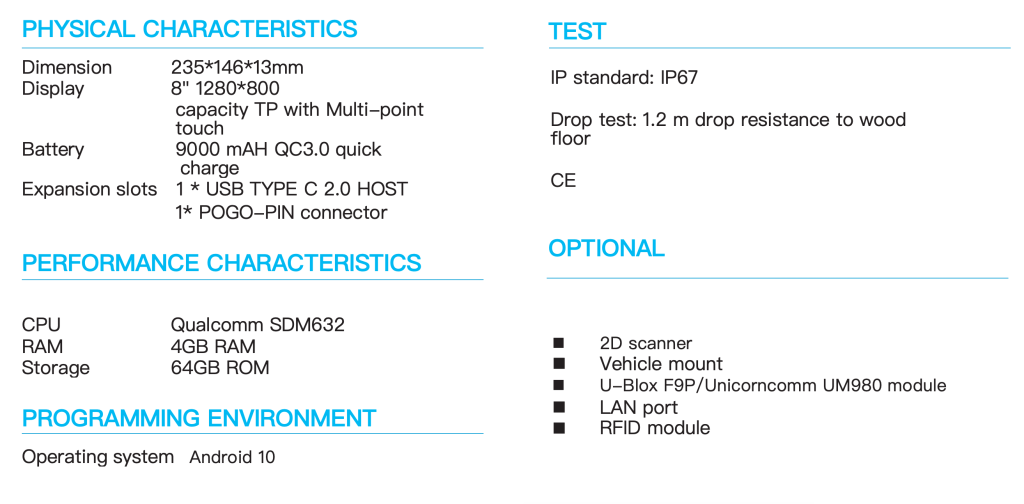

T5 Specification
| CPU | Qualcomm SDM632, 2.2GHz |
| Memory | RAM:4GB,ROM:64GB |
| OS | Android 10 |
| Display | 8 inch IPS screen, 1280*800, 500 nits |
| Touch Panel | Multi-point capacitive |
| Dimenson | 235*146*13mm |
| Weight | 600g |
| Battery | 8000 mAh, support QC3.0 quick charge, Li-polyment, removeable battery |
| Camera | 5MP+13MP |
| WiFi | 802.11 a/b/g/n/ac, 2.4GHz/5GHz |
| 3G/4G frequency | GSM:850/900/1800/1900 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39; TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28 |
| GPS | U-Blox M8030(U-Blox F9P is optional) |
| NFC | Built-in, 13.56 MHz |
| 2D scanner(optional) | Newland EM3296 image Sensor: 640X480 CMOS; illumination: Red light LED 625 ± 10n; Reading system: 1D and 2D |
| UHF(optional) | FCC (USA) 902MHz ~ 928MHz Europe 865MHz~867MHz SRRC-MII (China) 840-845MHz, 920-925MHz Reading label No. per second >50, Reading distance >3 Meter |
| USB port | USB Type-c support OTG, USB 2.0 |
| POGO-PIN | POGO-PIN coonector for data transmission |
| TF Card | support SDHC/SDXC x1 max:128G 0 |
| SIM Card | 3G/4G, Dual sim & Dual standby |
| Operating Temperature | -20℃~60℃/ -4 °F to 140 °F |
| Storage Temperature | -30 °C to 70 °C/ -22 °F to 158 °F |
| Humidity | 5%RH~95%RH(non condensing) |
| IP Grade | IP 67 |
| Drop Height | 1.2m composite wood floors, in operation status |
