RuggedT – 8 inch Industrial Tablet W2H

8 inch Rugged Tablet W2H

W2H is a 8 inch rugged tablet, has Win 10 OS and handy enclosure, suitable for different industries such as field survey, warehouse, factory and fleet management, etc. Its 700 nit screen can fit in outdoor environment, 2D scanner, NFC reader and handy enclosure can meet different requirements.

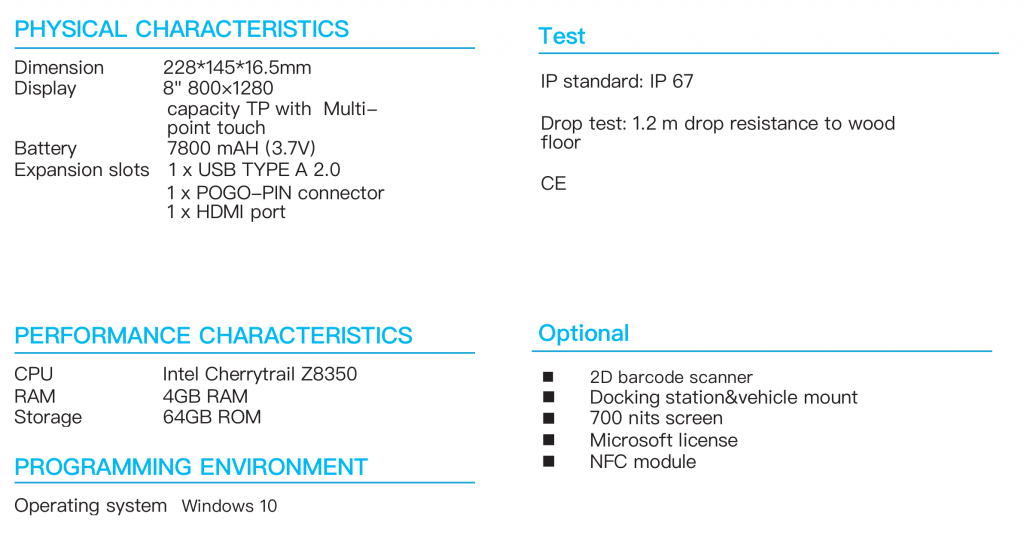

W2H Specification
CPU Intel Cherrytrail Z8350
Memory RAM:4GB,ROM:64GB
OS Windows 10
Display 8 inch IPS screen, 1280*800, 700 nits
Touch Panel Multipoints Capacitive, G+G, Rigidity: above 7H-Anti-scratch, TP thickness: 1.1mm, COF, support handwriting
Dimenson 228*145*16.5mm
Weight 740g
Battery 7800 mAH, 3.7V
Camera 2MP+5MP
WiFi 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI
3G/4G frequency GSM:B3/B8 or B2/B3/B5/B8; WCDMA: B1/B5/B8 or B1/B2/B5/B8; TDD-LTE: B38/B39/B40/B4 or B40; FDD-LTE: B1/B3/B5/B7/B8/B20 or B1/B2/B3/B4/B5/B7/B8/B28
GPS U-blox NEO-7, support : GLONASS, QZSS, GPS: Capture sensitivity: -160 dBm: Cool Start Time: <30 seconds, Hot start time: <28 seconds, frequency: 0.25 Hz … 10 MHz (configurable)
NFC(optional) 13.56 MHz
2D scanner(optional) MOTO SE4710;
USB port USB 2.0*1 (Host) for windows
POGO-PIN POGO-PIN coonector for data transmission and charging
DC Jack DC 5V 3A ∮3.5mm Power connector*1
HDMI HDMI 1.4a Type C*1
TF Card support SDHC/SDXC x1 max:128G
SIM Card 3G/4G,SIM card slot*1
Operating Temperature -10℃~50℃/ 14 °F to 122 °F
Storage Temperature -30 °C to 70 °C/ -22 °F to 158 °F
Humidity 5%RH~95%RH(non condensing)
IP Grade IP 67
Drop Height 1.2m composite wood floors, in operation status

IP 67 strong enclosure

With IP 67 grade and strong enclosure, W2H can work in harsh environment and help you with different work tasks.

W2H's Mounting solution

Thanks to its 700 nits screen and small size, the W2H is well suited for fleet management tasks. In addition to being used in a vehicle, the solid vehicle mount is also used by many customers on large industry equipments.

2D scanner function

Lots of our customers required Win 10 rugged tablet for data capture function, and we usually recommend W2H since it is easy to hold on hands and with fast speed 2D scanner. SDK will be provided if needed!

Previous slide
Next slide

Rugged T Will Ensure Final Inspection and Strong Package

There is a strict QC procedure on the rugged devices’ production line, but before ship out, we will also inspect all devices thoroughly and send you a report to ensure they are 100% qualified. Moreover, we will pack your devices with reinforce boxes and proper buffering to make sure you will received them intact!

Docking station

Vehicle charger

Vehicle mount

Stylus
