RuggedT – 10.1 inch RTK Rugged Tablet T11
10.1 inch Rugged Tablet T11

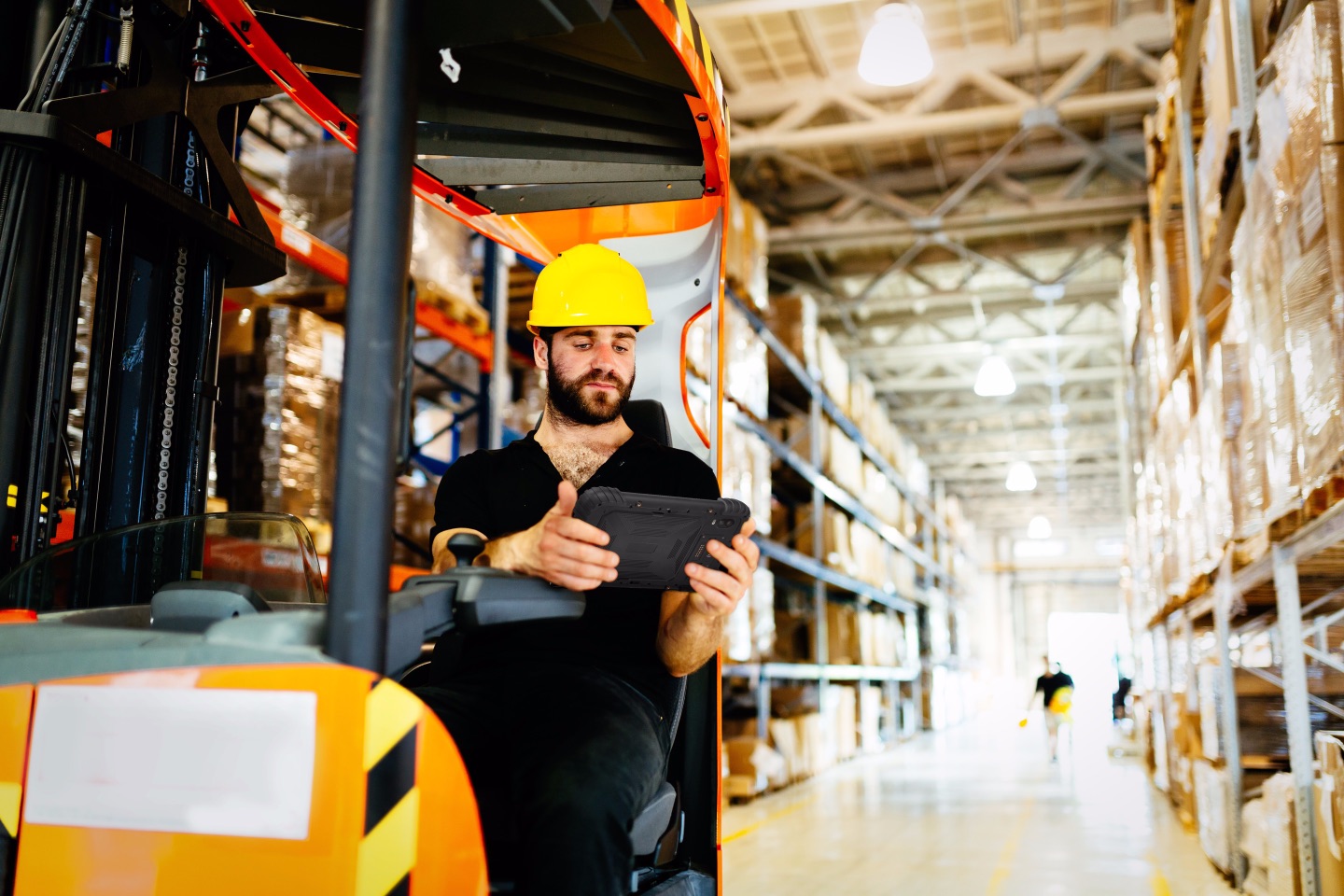

T11 is 10.1 inch rugged tablet, which supports 2D barcode scanner, vehicle charging and high precision GPS, suitable for warehouse management, construction site, fleet management, field survey industry and so on. Moreover, we made it IP 67, MIL-STD-810H and installed sunlight-readable screen, now it is selling like a hot cake in more 30+ countries! We can also customize the unique functions that you need.
| T11 Specification | |
|---|---|
| CPU | Qualcomm MSM8953 |
| Memory | RAM:4GB,ROM:64GB |
| OS | Android 10 |
| Display | 10.1 inch IPS screen, 1920*1200, 650 nits |
| Touch Panel | Multipoints Capacitive |
| Dimenson | 271*174*16mm |
| Weight | 950g |
| Battery | 11000 mAh, support QC3.0 quick charge, Li-polyment, removeable battery |
| Camera | 8MP+16MP |
| WiFi | 802.11 a/b/g/n/ac, 2.4GHz/5GHz |
| 3G/4G frequency | GSM: 850/900/1800/1900 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 |
| GPS | U-blox M8030 |
| NFC | Built-in, 13.56 MHz |
| 2D scanner(optional) | Newland EM3296 |
| High accuaracy GPS pod (optional) | U-Blox F9P or ComNav K803 |
| USB port | USB2.0 *2 OTG Type A, USB3.0 *1 Type C |
| POGO-PIN | POGO-PIN coonector for data transmission |
| TF Card | support SDHC/SDXC x1 max: 512G |
| SIM Card | 3G/4G, Dual SIM & Dual standby |
| Operating Temperature | -20℃~60℃/ -4 °F to 140 °F |
| Storage Temperature | -40 °C to 70 °C/ -40 °F to 158 °F |
| Humidity | 5%RH~95%RH(non condensing) |
| IP Grade | IP 67 |
| Drop Height | 1.2m composite wood floors, in operation status |
| MIL-STD-810H | MIL-STD-810H certified |
MIL-STD-810H certified
T11 is the second MIL-STD-810H certified rugged tablet, which is fond by lost of customers and some of them bought T11 for defense and security project. T11’s tough enclosures can withstand from -20℃~60℃, and its great IP 67 grade also make it an excellent worker in different projects!
RTK and GNSS receiver
For those customers who works in GNSS field and requires a big screen rugged tablet, our first recommendation will always be T11! T11 has built-in U-Blox M8N module, moreover, it support U-Blox F9P and ComNav K803! After you buy our devices, our customers will teach you how to use the commands and codes and help you to develop your own APK. We don’t want to be a seller only, but want to be your partner to expand bigger market!
OTA + Remote Support
If you are looking for a rugged device for your fleet management or other management projects, the most important concern will be the OTA and remote support since you don’t want the upgrade method to be troublesome. T11’s OTA upgrade can solve this issue in an impeccable way! Our 30+ R&D team can provide the remote support that you need, together we will make T11 more suitable to your software.
Rugged T Will Ensure Final Inspection and Strong Package
There is a strict QC procedure on the rugged devices’ production line, but before ship out, we will also inspect all devices thoroughly and send you a report to ensure they are 100% qualified. Moreover, we will pack your devices with reinforce boxes and proper buffering to make sure you will received them intact!
Hand strap
Vehicle mount
RTK antenna
Carry bag
Keyboard
Stylus
Docking
Vehicle Charger
